Mesick Cohen Wilson Baker was tasked to record the shingle types and locations on the four main elevations of Naumkeag. Just over one full day of scanning produced these colored laser scan elevations. These elevations were then traced in AutoCAD to prepare the line based drawings you see below.

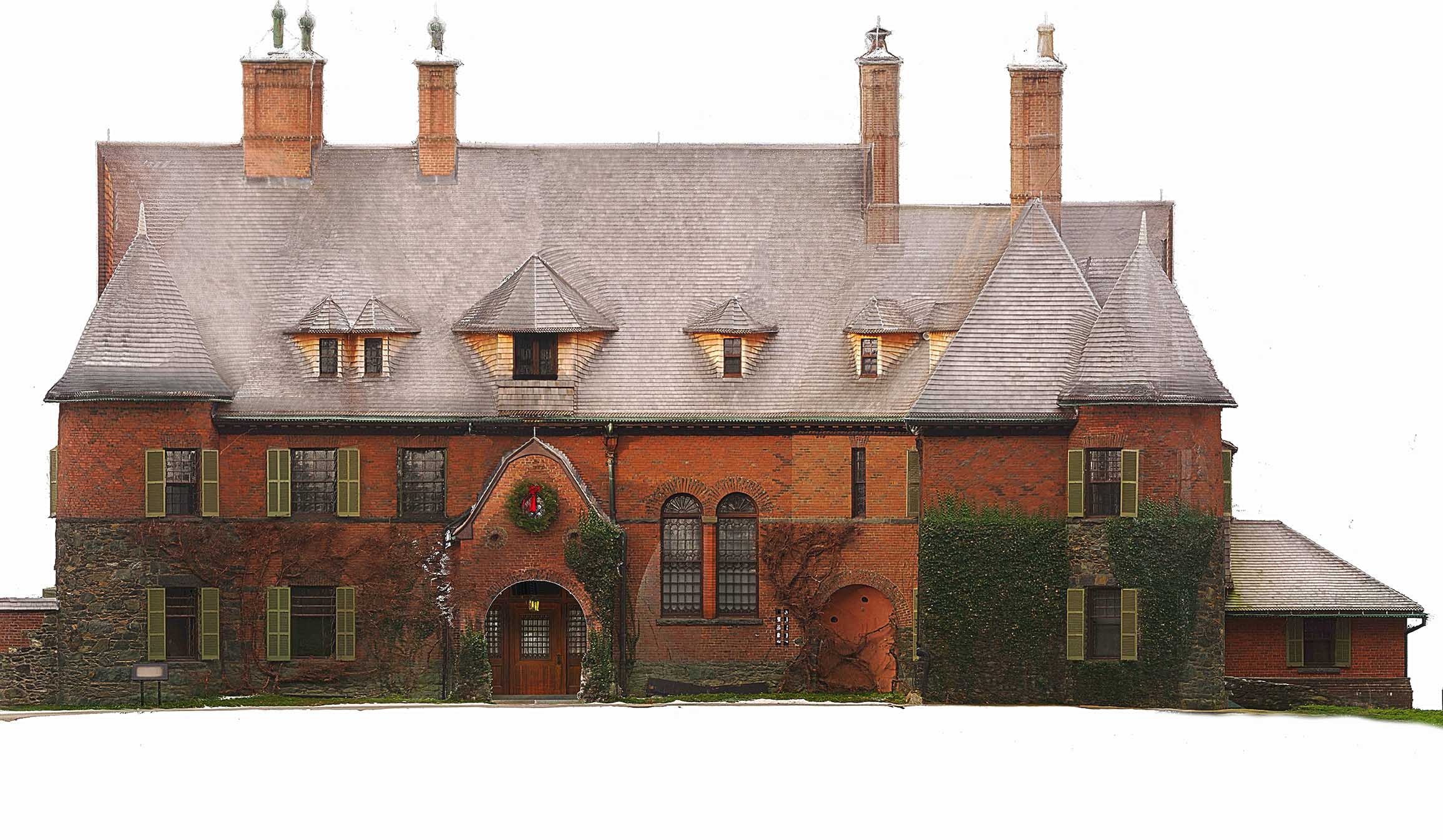

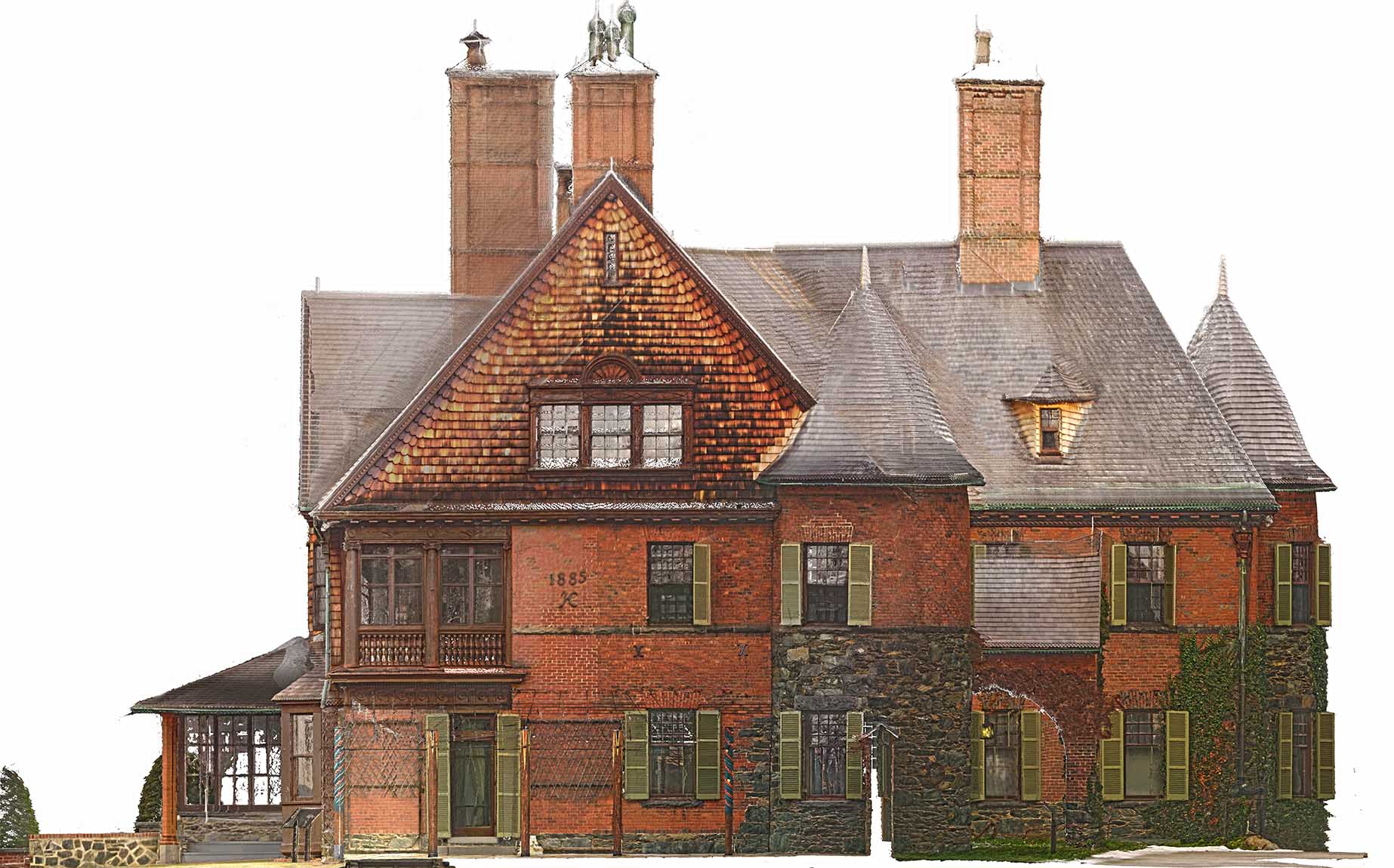

Color laser scan point cloud was rendered to produce this elevation.
Line work is then traced over the point cloud elevation in AutoCAD

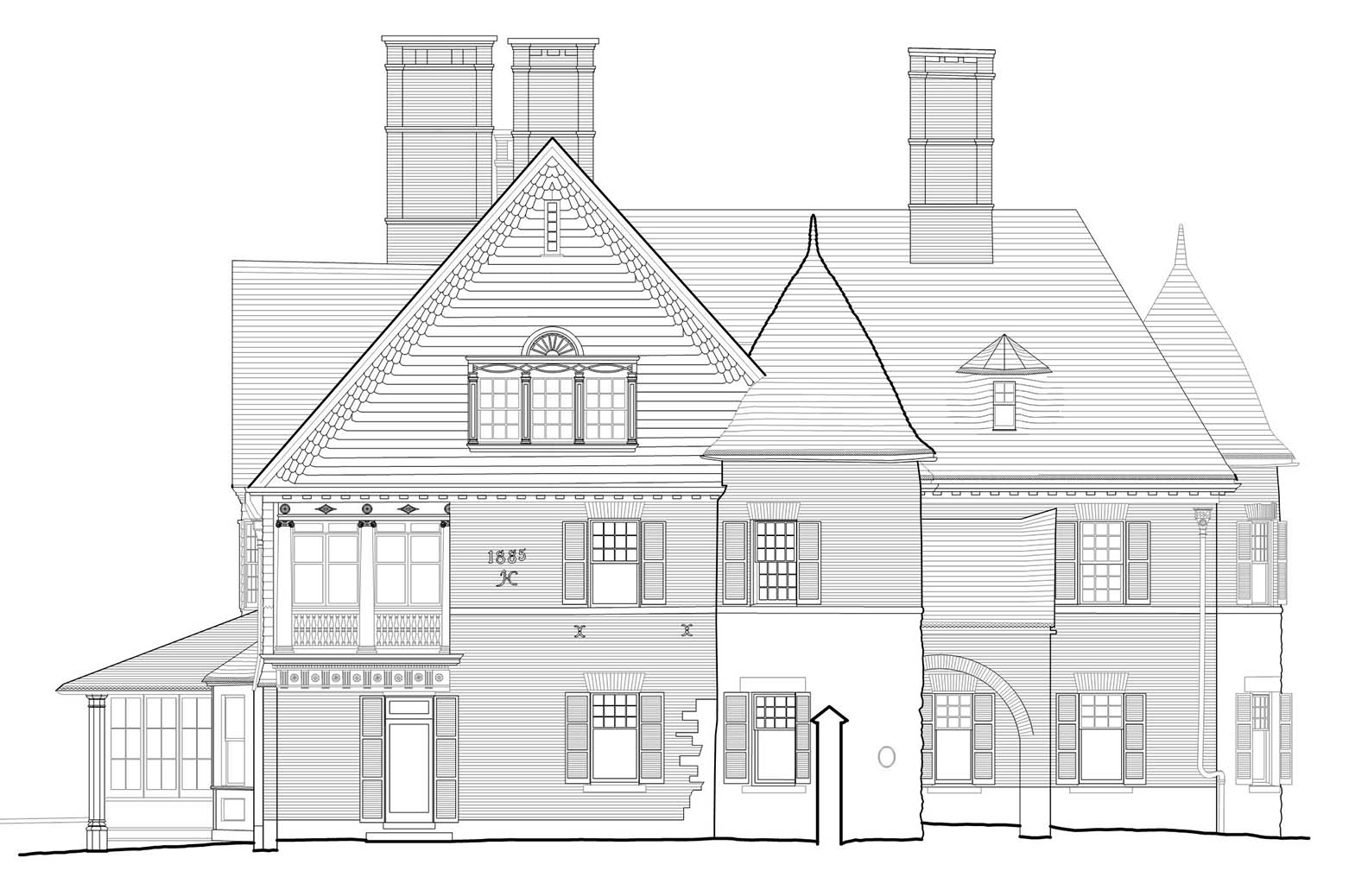

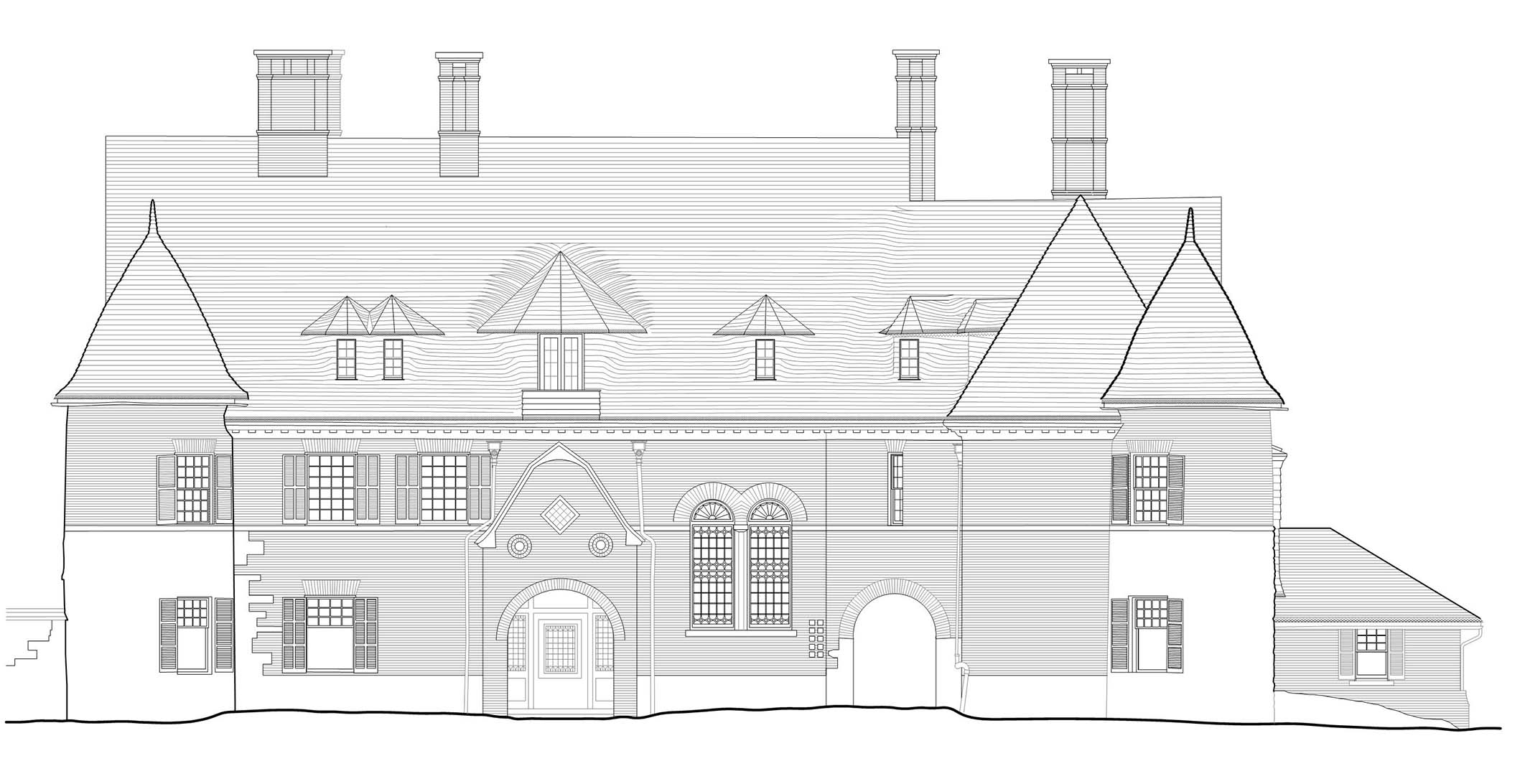

Final line drawing elevation

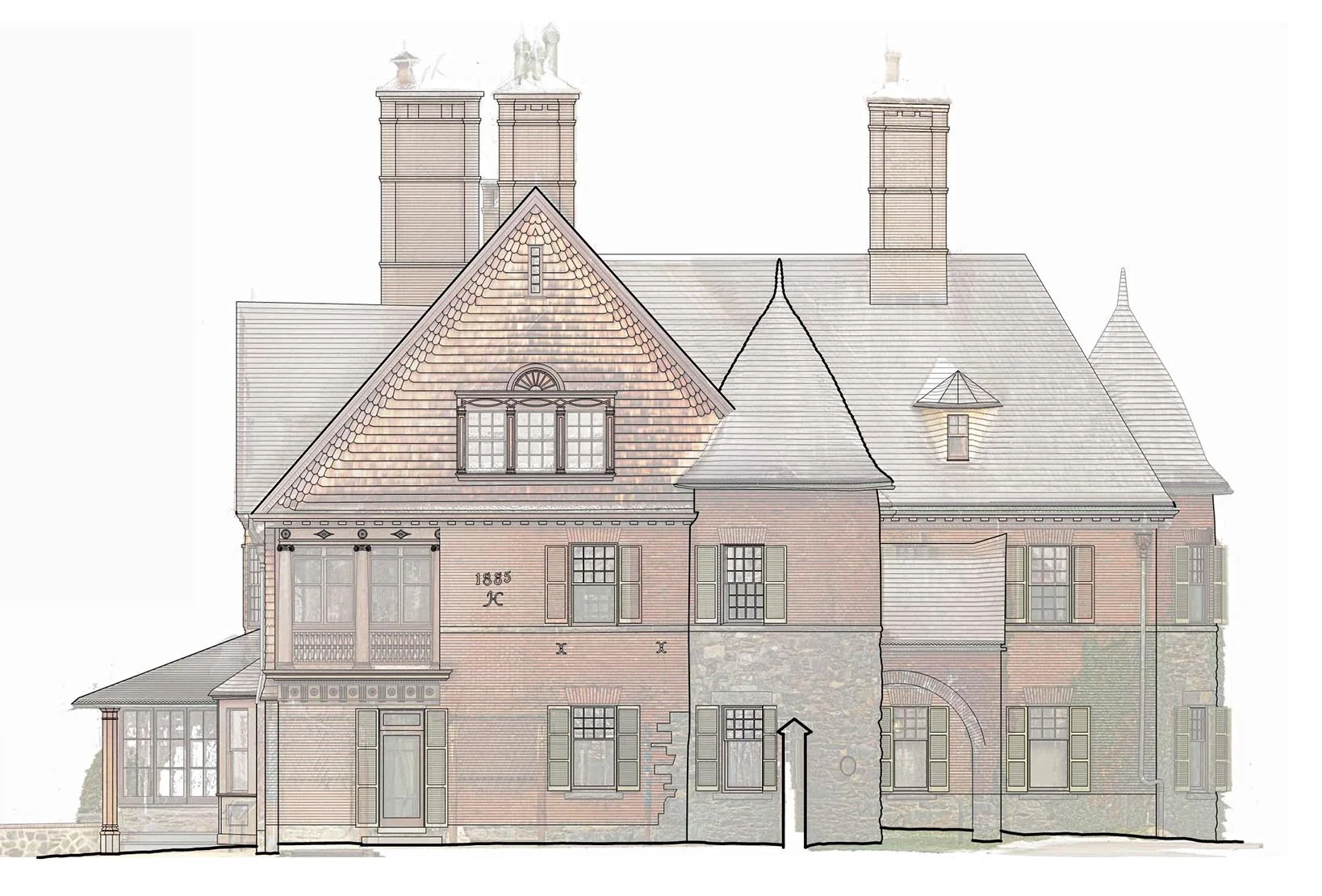

Additional elevation showing point cloud detail.
This roof plan was generated from the ground, without the use of a ladder, scaffolding, or lift.
Video fly around showing extend and detail of project point cloud.
